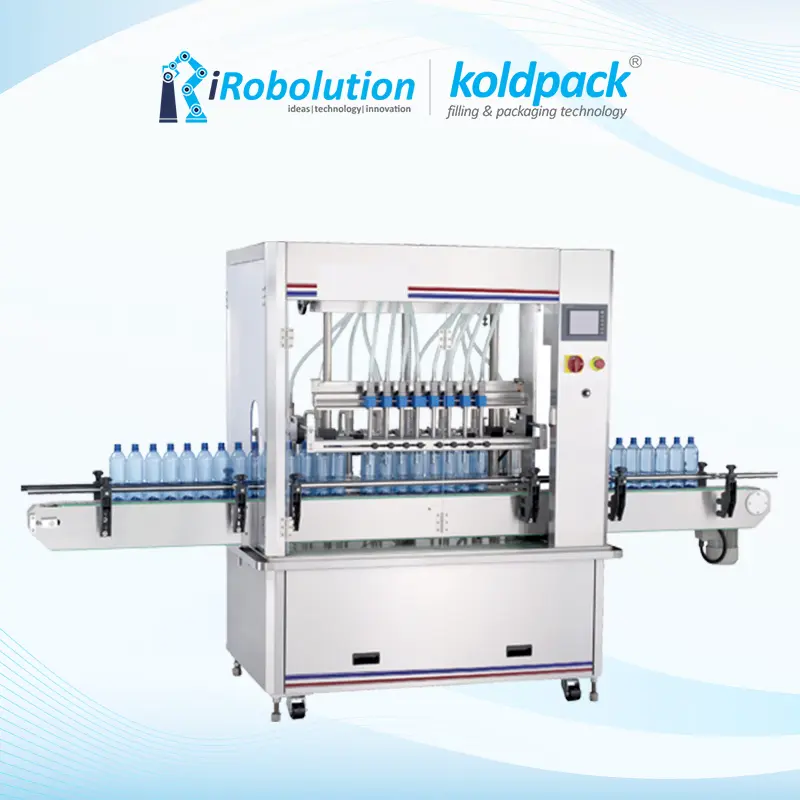

Linear Liquid Filling Machine: Precision and Efficiency for Bottling Lines
Engineered by top Linear Liquid Filling Machine Manufacturers in India, this machine boasts a compact and highly efficient design, coupled with an elegant look that enhances any production floor. The machine operates on the linear principle with a sophisticated rotary actuator-based mechanism, ensuring smooth and accurate filling operations. The process begins with manual loading of bottles, followed by a thorough four-stage bottle sterilization process. Bottles are meticulously cleaned with hot water, detergent water, product water, and air wash, ensuring the highest levels of hygiene and product safety. One of the standout features of this machine is its multi-functional and multi-featured capabilities, which align perfectly with Good Manufacturing Practice (GMP) requirements for filling any rigid material container.
Salient Features Of Linear Liquid
Filling Machine
Various Key Features
Automatic Linear Liquid Filling Machine: Get Unparalleled Performance
Our Automatic Linear Liquid Filling Machine incorporates an inbuilt zero-hold gravity tank on the top system. The liquid flow is precisely measured and converted into electronic signals via a Flow Sensor, which is meticulously controlled by a Programmable Logic Controller (PLC) for unparalleled accuracy. This ensures that adjustments for different container capacities, ranging from 200 ml to 1000 ml, are minimal and user-friendly.
Technical Specifications
20+
Experience
| Model | e-FILL-2H | e-FILL-4H | e-FILL-6H | e-FILL-8H |
|---|---|---|---|---|
| No. of filling Heads | 2 | 4 | 6 | 8 |
| 50 ml to 1 liter | 50 ml to 1 liter | 50 ml to 1 liter | 50 ml to 1 liter | |
| Filling Range | 1 liter to 5 liter | 1 liter to 5 liter | 1 liter to 5 liter | 1 liter to 5 liter |
| 5 liter to 20 liter | 5 liter to 20 liter | 5 liter to 20 liter | 5 liter to 20 liter | |
| Electric Specifications | 2 H.P, 440V 3 phase/50 Hz | 2 H.P, 440V 3 phase/50 Hz | 3 H.P, 440V 3 phase/50 Hz | 4 H.P, 440V 3 phase/50 Hz |
| Air Pressure | 4-6 Kg/Cm2 | 4-6 Kg/Cm2 | 4-6 Kg/Cm2 | 4-6 Kg/Cm2 |
| Air Consumption | 1cfm | 1cfm | 1.5cfm | 2cfm |
