Cubitainer Filling Machine: Revolutionize Your Liquid Packaging
Our Filling Machine is a versatile solution for handling a wide range of liquids in cubitainer/politainer formats. This PLC-based system offers both semi-automatic and fully automatic options, with outputs ranging from 40 to 400 cubitainers per hour, making it ideal for businesses of all sizes. With a proven track record of successful installations across India, we stand at the forefront of the packaging industry’s evolution. Our turnkey line operations encompass every stage from case erecting to palletizing, ensuring seamless integration and optimal efficiency.
Salient Features Of Cubitainer
Filling Machine
Cubitainer Filling Machine: A Complete Turnkey Solution
As leading Cubitainer Filling Machine Suppliers in India, we tailor each machine to meet your unique specifications, providing a comprehensive suite of features such as pressurized tank liquid supply for consistent flow rates, electromagnetic flow meter-based filling systems with zero-drip nozzles, and optional nitrogen purging to maintain product purity.
Our servo-based capping system guarantees precise torque control, facilitating uninterrupted production. Furthermore, our fully automatic two-tank clean-in-place system with customizable cleaning programs ensures hygiene and operational excellence. With years of pioneering technology development, we offer unrivaled expertise in customization and innovative packaging solutions. Whether you’re looking to enhance production efficiency or streamline packaging operations, we are your trusted partner for cutting-edge, reliable solutions.
Technical Specifications
20+
Experience
| No. | Description | Details |
|---|---|---|
| 1 | Machine Dimension | Approx. It will change as per modification in design |
| a) Length: | 2000 mm | |
| b) Width: | 1400 mm | |
| c) Height: | 2546 mm | |
| 2 | Nos. of Head | 8-1/4-1/1-1 (Filling – Capping) |
| 3 | Measuring System | Flow Meter based Filling system & Weight Based Filling Sytem |
| 4 | Flow Meter Make | Endress+Hauser (E+H) Magnetic flow meter and Mass Flow meter |
| 5 | Capping System | Screw Capping |
| 6 | Output (BPH) | 50-480 Box per hour (@ 20 ltr.) |
| ** | Speed depends upon fill volume, neck diameter of container, viscosity, specific gravity, and foaming characteristics of liquid to be filled. | |
| 7 | Container Details | Box Size: 5 ltr., 10 ltr., 20 ltr. |
| 8 | Direction | Clock Wise |
| 9 | Power Supply | 440V / 3Φ / 50 Hz AC HP/KW: 5 H.P. (Machine 3.7 kW) |
| 10 | Compressed Dry Air Requirement | |
| a) Inlet Air Pressure: | 5 to 6 bar | |
| b) Working Pressure: | 5 bar | |
| c) Required Air Quantity: | 2.5 CFM |

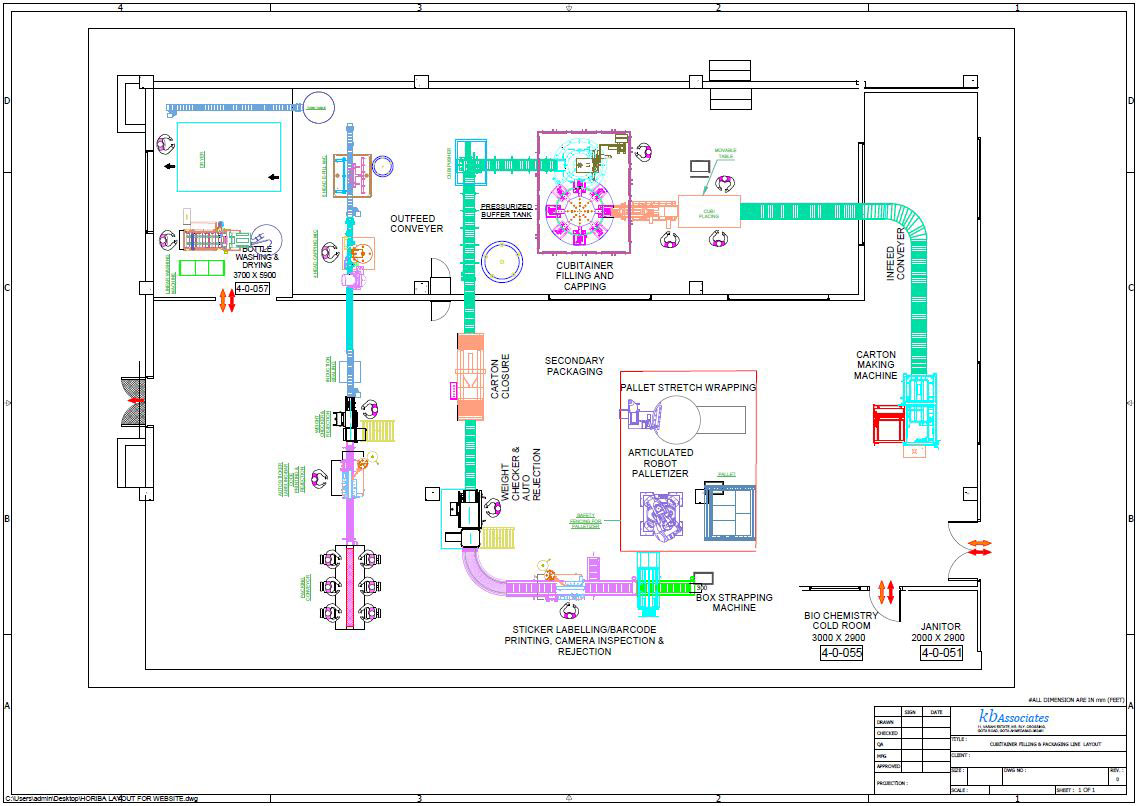

CAD Configuration
Other Details

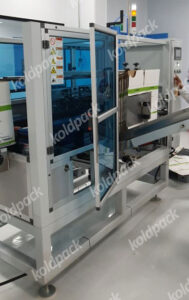

Box opening & sealing machine
A Box/Carton opening sealing machine or cartoner is a packaging machine that forms cartons: erect, close, folded, side seamed and sealed cartons. Packaging machines that form a carton board blank into an open box carton. The offered carton sealing machine is easy to operate and suitable for wide range of box sizes.

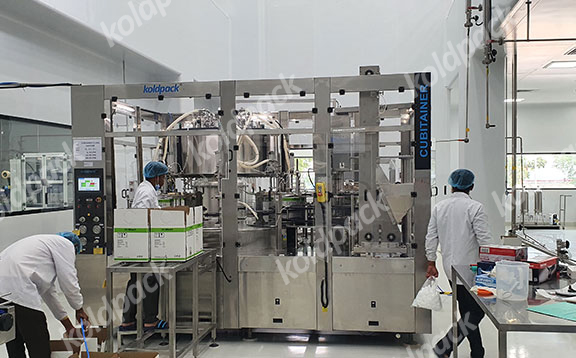

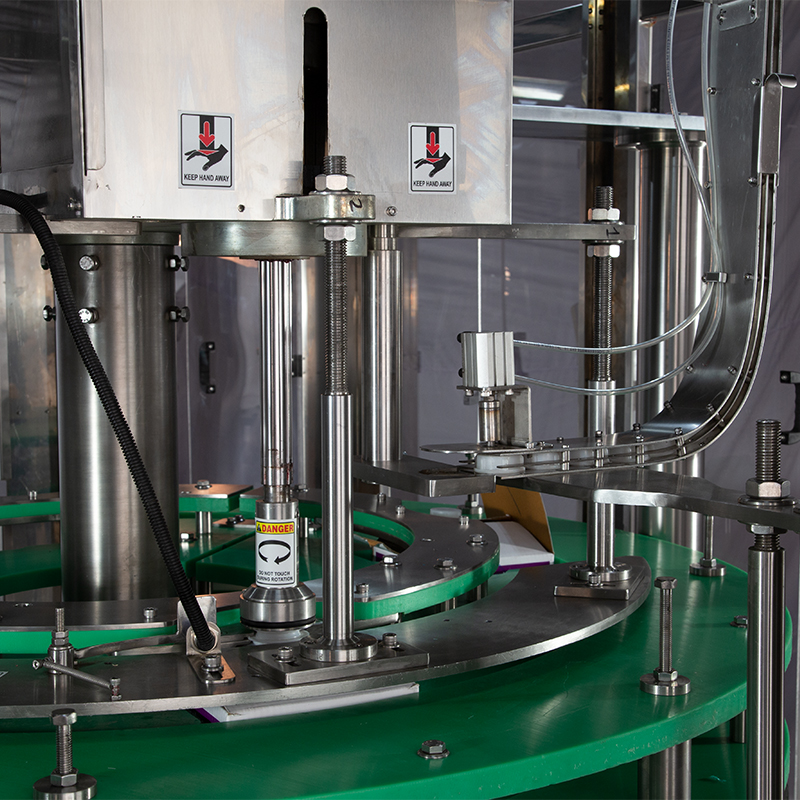

Cubitainer filling & capping machine
Cubitainer filling is a wide range of liquid filling machines for cubitainer/ politainer. Consist of a filling & capping carrousel on single frame. Available with different combinations in semi-automatic & fully automatic segments with output from 40 to 400 cubitainer per hour.
Key Features
- Filling liquid supply by pressurized tank with Consistent product flow rate even with viscosity variations.
- Electromagnetic Flow meter based filling system with specialized end shut off zero dripping nozzles which gradually fills cubitainer bag from bottom.
- Also available with nitrogen purging to prevent product contamination.
- Servo based capping system with torque measurement & control for uninterrupted production.
- Fully automatic 2 tanks clean in place system with customized cleaning programs.

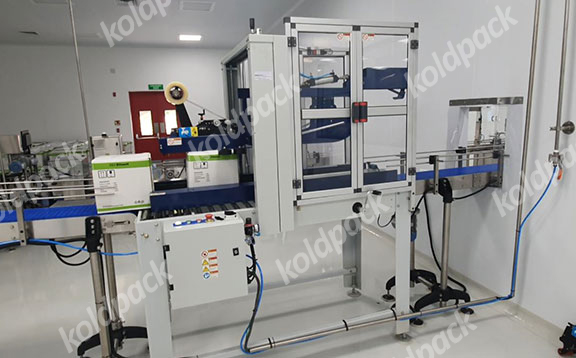

Box closing & sealing machine
A box/carton closing with flap closure first close the box from all sides & tapping on it. To make box tamper proof. Almost all random sizes boxes are closed & tapped with single machine.

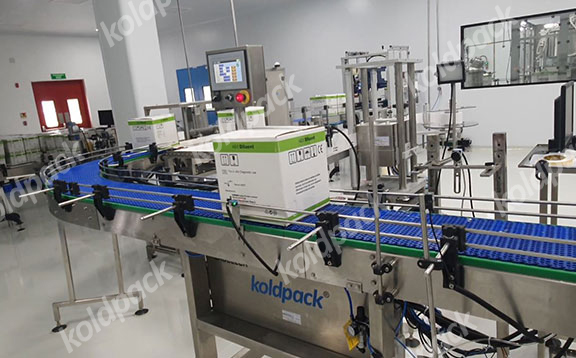

Sticker Labelling machine with camera inspection & automatic rejection
Self-adhesive sticker labelling with barcode/QR code printing is one stop solution for print, batch code, manufacturing date, barcode, QR code & affixing onto the box.
After labelling smart camera inspection system monitors the Barcode / QR code & if found incorrect the box will be rejected & reused.

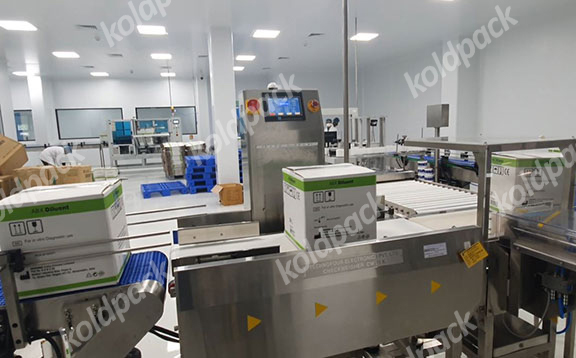

Box Weight checker & automatic rejection
The Dynamic Weighing Systems – check weight systems, are widely used for checking the weight of filled pack and segregate the overweight and underweight packs. These systems are highly effective and helping tools where the packing speed is too high to avoid manual error. This helps the manufacturer to keep the track of line so that pack with correct weight will reach the market and eliminate the complaints from the market.
The check weight systems are based on the HMI and ARM technique and hence offer very precise settings and operations.

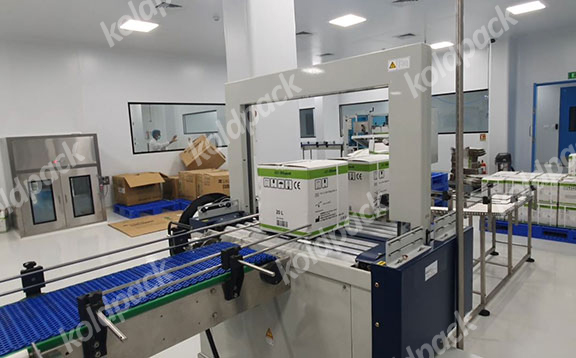

Box Strapping Machine
Automatic Strapping Machine is an advanced packaging machine, which makes use of flat & plastic steel bands. It can be tightened around the package and efficiently used to secure the package. Automatic Strapping Machine can bundle the products together and can boost the containment strength. This is also used to secure the load to a shipping pallet. It has the capacity to combine, reinforce, stabilize, fasten and hold the items. reinforce, stabilize, fasten and hold the items.
