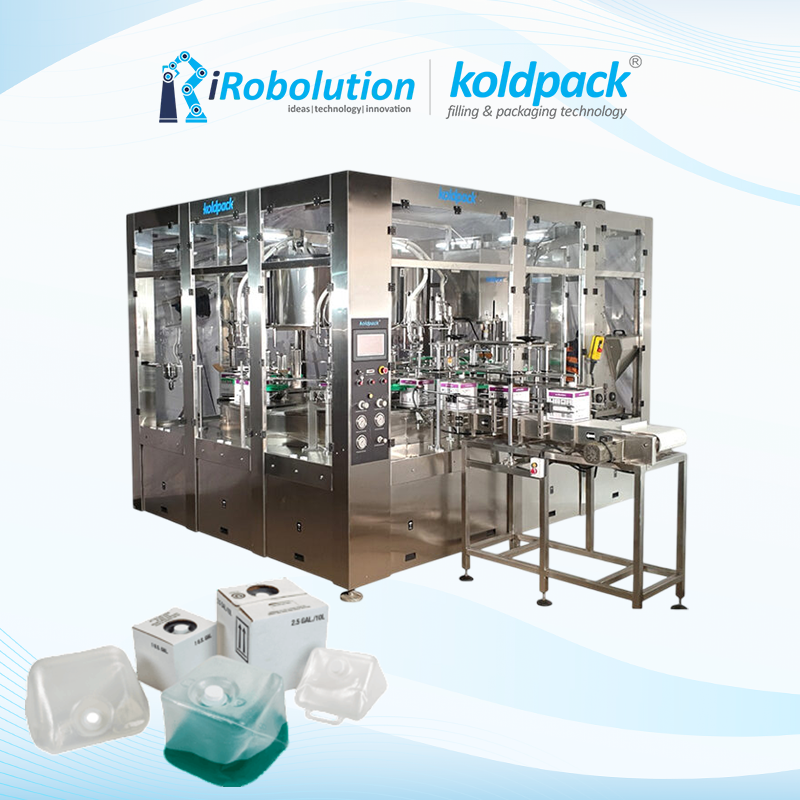

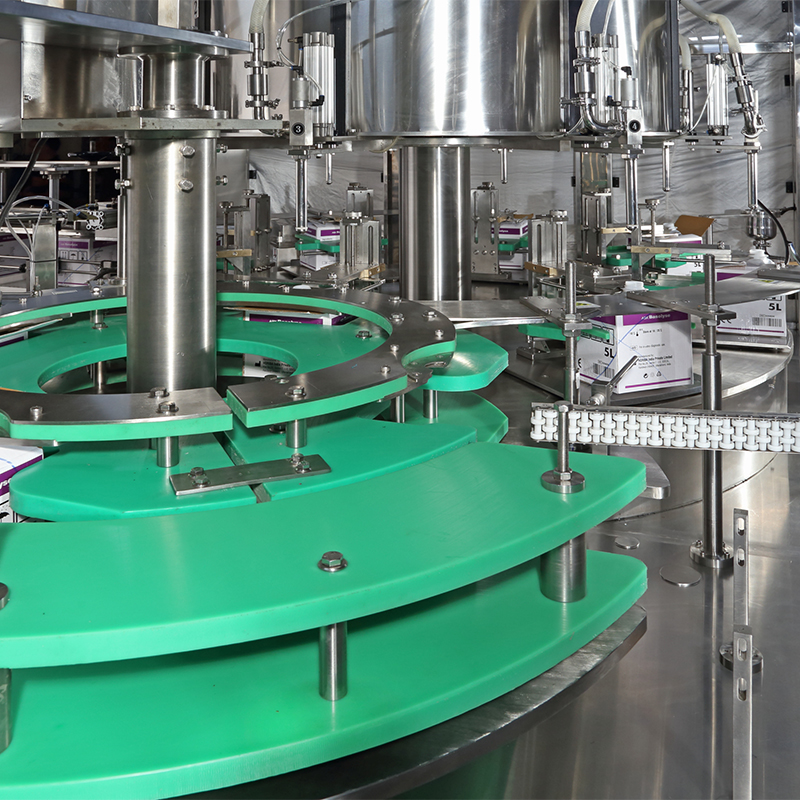

Get the Best Quality Bag in Box Filling Machine
Salient Features Of Bag In
Box Filling Machine
Unmatched Compatibility with
Our Bag-in-Box Fillers
Using bag-in-box fillers, you may improve overall product quality and shelf life while lowering your company’s carbon impact. These Automatic Bag in Box Filling Machines are compact, preassembled, and pretested, allowing for high output speeds and rapid changes between formats and production phases. Contact us for any of your liquid bag in box filling system requirements and receive quality service.
Technical Specifications
20+
Experience
| No. | Description | Details |
|---|---|---|
| 1 | Machine Dimension | Approx. It will change as per modification in design |
| a) Length: | 2000 mm | |
| b) Width: | 1400 mm | |
| c) Height: | 2546 mm | |
| 2 | Nos. of Head | 8-1/4-1/1-1 (Filling – Capping) |
| 3 | Measuring System | Flow Meter based Filling system & Weight Based Filling Sytem |
| 4 | Load-Cell Make | METTLER TOLEDO or equiveant |
| 5 | Capping System | Screw Capping |
| 6 | Output (BPH) | 50-480 Box per hour (@ 20 ltr.) |
| ** | Speed depends upon fill volume, neck diameter of container, viscosity, specific gravity, and foaming characteristics of liquid to be filled. | |
| 7 | Container Details | Box Size: 5 ltr., 10 ltr., 20 ltr. |
| 8 | Direction | Clock Wise |
| 9 | Power Supply | 440V / 3Φ / 50 Hz AC HP/KW: 5 H.P. (Machine 3.7 kW) |
| 10 | Compressed Dry Air Requirement | |
| a) Inlet Air Pressure: | 5 to 6 bar | |
| b) Working Pressure: | 5 bar | |
| c) Required Air Quantity: | 2.5 CFM |
Frequently Asked Questions
This range handles all bag-in-box sizes from 5 to 20 litres on the same machine, so switching between container sizes doesn’t require the kind of extensive changeover parts some fillers need. The changeover time depends on your specific format mix, so confirming your exact size range with the team helps set realistic expectations before ordering.
Yes, there’s a built-in interlock for exactly that. The “No Bag – No Fill – No Cap” feature prevents the capping stage from running unless a bag was filled first, which removes reliance on an operator catching a missed fill manually before it becomes a shipped, empty box.
It needs a 440V 3-phase 50Hz supply of 5 HP (3.7 kW), which is common for industrial-scale filling equipment but not to be found in a standard single-phase setup. Make sure that the electrical infrastructure in your facility already meets this requirement before you install so that you don’t have a wiring problem at the last minute during set-up.
You’ll need your own compressed air supply, since the machine requires 5 to 6 bar inlet pressure with a working pressure of 5 bar and roughly 2.5 CFM air quantity. If your facility doesn’t already run a compressor, that’s an additional infrastructure cost to factor in before committing to this machine.
Both measuring systems are available: flow meter-based filling and weight-based filling using a Mettler Toledo or equivalent load cell, so the choice isn’t necessarily locked in permanently depending on your configuration. For products where weight consistency matters more than volume, or vice versa, it’s worth discussing which measuring system fits your specific liquid and packaging requirement.
It is designed for a wide range of applications outside of food and beverage, including chemical industry applications such as detergents and also industrial fluids such as lubricants and solvents. The stainless steel build is resistant to corrosion across different types of liquid, but it’s still worth checking chemical compatibility for your specific formulation with the team before you commit.
The drive system is based on an indexer mechanism specifically because it runs lower maintenance than some rotary alternatives, and stainless steel construction throughout supports easier cleaning and upkeep over time. The maintenance frequency depends on your daily run volume and product type, so it’s not entirely maintenance-free regardless of the lower baseline.
The machine shown comes with boxes of 5 litre, 10 litre and 20 litre capacity. But changing formats may need suitable settings, fittings or change parts. Changeover time can also be affected by bag dimensions, type of cap, neck diameter and product flow. In your inquiry, please provide all the required pack sizes so that the supplier can confirm compatibility before production starts.
Check the conveyor height, pack orientation, box dimensions, upstream supply, downstream handling, electrical controls, compressed air, and available floor space. The filler must also communicate correctly with connected equipment. If the machine will feed a case packer, palletizer, or inspection unit, share the complete line layout so transfer points and operating speeds can be matched properly.
